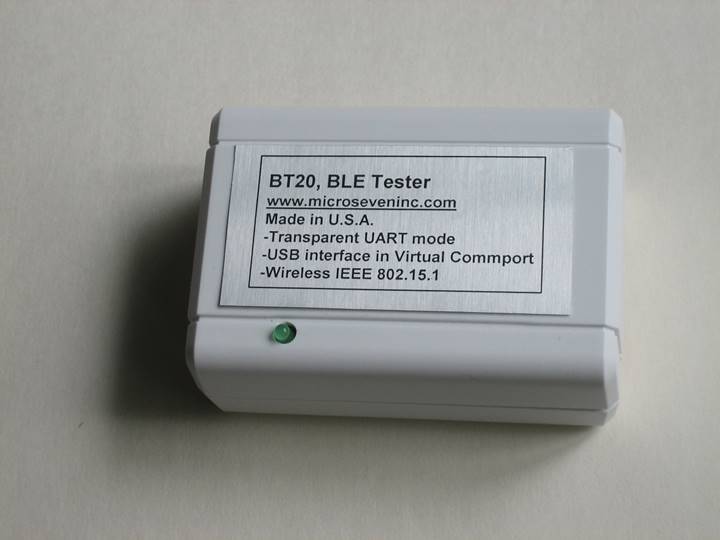

SEVEN MODEL BLEtester, USB Interface to test BLE devices
Copyright 2023 Micro Seven, Inc.
Features:
-Transparent
UART mode to BLE devices using RN4870/RN4871 for client or server mode
-USB
and USB powered interface
-Easy
testing of BLE server
SPECIFICATIONS:
Wireless Standard: IEEE 802.15.1
USB
interface by a virtual RS232 com port
300-115200 baud rate, no handshake, one stop bit, no parity, and
eight data bits
Designated port number is available in PC’s Device Manager.
For
testing BLE servers that use RN4870/RN4871 BLE modules
Commands:
all commands of RN4870/RN4871
Special
commands for BT20:
Sending “###” to disconnect and reset socket
Indicators
and connectors:
Power indicator, green LED
USB connector for power and PC interface
Options:
Wall-mount bracket
Dimensions: 6
cm (2.25") W x 8.3 cm (3.25") H x 3.2 cm (1.25") L
Weight:
500g (3 oz)
Environmental:
Operating temperature: -10 to 40 degree C, Humidity: 85% RH at 35 degree C
Demo
software: “bt20demo.exe” provides connecting and disconnecting socket with server.
Characters entered inside an edit window are transmitted to the interface. The screenshot
below shows connecting server with MAC address “D88039F0D2EF”. Resetting socket
is by sending “###”. Characters that are output at USB interface are echoed.
Six
Month Warranty
