Contact-ID, SIA FSK or Pulse 4+2 messages to IP message Converter, model IP108, bypasses telephone lines and sending DC09 digital alarm messages with or without encryption.

Note: encryption feature is available for US customers only because of US export control restriction.


COPYRIGHTS MICRO SEVEN, INC. 2025



IP108 is shown in the above picture. IP108 contains Internet/Ethernet connector, telephone jack, power connector, and power indicator. AC/DC power adapter is also included as a standard accessory.

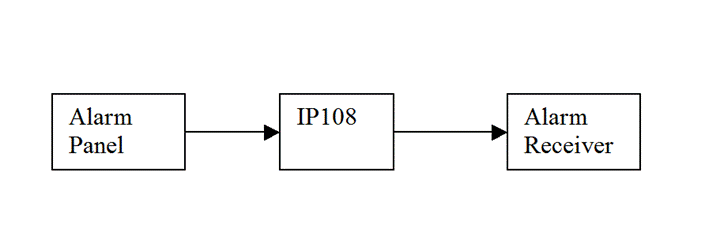

IP108 simulates telephone line and alarm receiver, receives analog alarm messages, converts into DC09 messages with or without encryption.

Features:

-contains simulated telephone line circuit
-Ethernet and network interface for Internet
-Transmit DC09 messages to IP message receivers
-Transmit handshake signals and kiss-off tones for Contact-ID, SIA-FORMAT, and Pulse 4+.
-DC09 Encryption including 128-bit, 192-bit, and 256-bit encryption for IP108-EQT, encryption model.
Note: IP108-EQT is not available for foreign customer except US foreign offices.

-Transmit emails

Advantages using IP108:

-No actual phone line required.
-No signal delay for transmitting digital signal over Internet
-No voice-over-IP circuit used.
-Secured alarm messages transmission

As a factory default condition, kiss-off tone generation by IP108  is held after “ACK” word from the IP server unless the following radio button is not on.

-Transmit DC09 message to two servers.

IP108 can transmit DC09 messages to one or two IP servers. In addition to IP messages, IP108 can transmit emails and text messages.

Typical Contact-ID DC09 messages after decryption is as shown below:

20750187"*ADM-CID"3591RJohn StevensL12345#1234[#1234|1131 01 015][M0004A34EA43A][V131 Perimeter-Burglar Alarm  Zone: 015 Partition:01   New Event or Opening][P222-333-4444]_21:08:33,09-02-2025

The name “John Stevens” is programmed in the receiver field, “0004A34EA43A” is MAC number for IP108, “P222-333-4444” is the phone number, “1234” is account number of Contact-ID message, and “V131 Perimeter-Burglar Alarm  Zone: 015 Partition:01   New Event or Opening” indicating event code of 131 with “Perimeter-Burglar Alarm”

An account number, zone  and partition in the above messages are from received Contact-ID message. The receiver field after “R” was programmed previously using IPPROG7A app. The MAC address in the message is from IP108. The time stamp shows UK time.

Typical decrypted SIA FSK DC09 messages that the server receives is as shown below:

DA180149"*SIA-DCS"3596RJohn StevensL12345#001111[#001111|NQA00|L90][M0004A34EA43A][V New Event QA- Console Emergency/Listen-in to Follow][P444-555-9990]_22:37:05,09-02-2025



In the above example, IP108 received address block(#001111), new-event block(NQA00) and Listen-in block(L90). The “V” field contains decoded event (New Event QA- Console Emergency), Listen-in event (L90)).

Typical decrypted Pulse 4+2 messages that the server receives is as shown below:
26250127"*PUL-4X2"3599RJohn StevensL12345#4455[#4455|01][M0004A34EA43A][V 01- Personal emergency, 2way voice - zone 1][P444-555-9990]_23:16:21,09-02-2025

In the above example, IP108 received address “4455” and 01- Personal emergency, 2way voice - zone 1

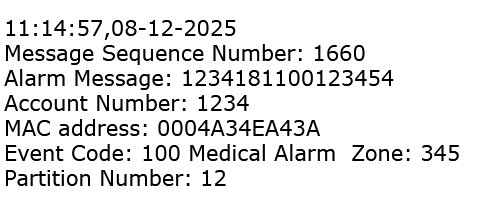

In addition to IP messages, an email message that is sent to an email address is as shown below:

The time shows local time in email messages.

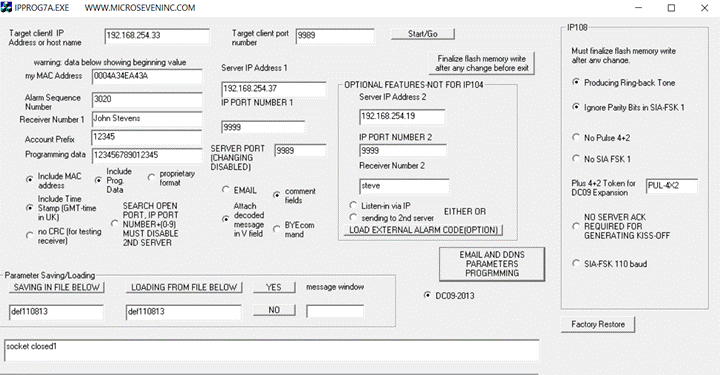

The programming software, IPPROG7A.exe is shown below:

The following programming is available with IPPROG7A:

1.    setting up IP address, port number of servers

2.    name and reference inormation for each 108

3.    producing ring-back tone

4.    kiss-off tone generation without acknowledgement from distant IP server

5.    insertion of UK time, decoded messages, proprietary DC09 format, other programming data, email parameters

6.    saving and loading programming data

7.    swith for enable/disable encryption for AES encryption with 128, 192, or 256 bit key

8.    email paramters including your own SMTP server, and From and To addresses.

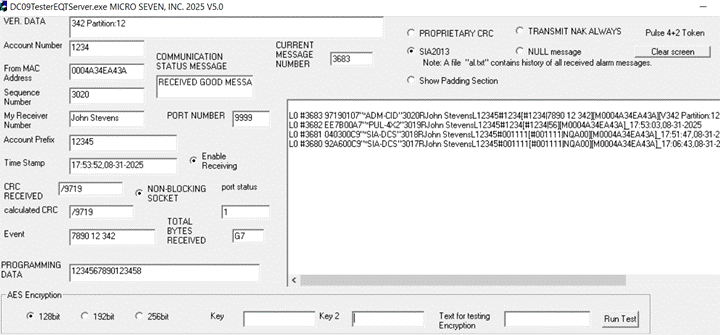

The format is compatible as SIA-DC09, and app DC09Tester or DC09Tester-EQT is available for leasing from Micro Seven. The encrypt version, DC09Tester-EQT is shown below:

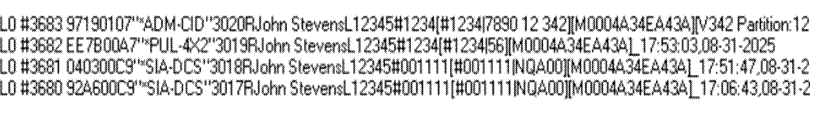

 The receiving data in the above screen for three protocols is:

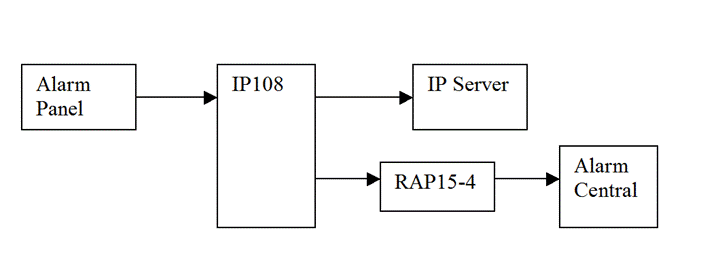

IP108 may be programmed to send DC09 messages to RAP15-4, IP Telephone Dialer which sends Contact-ID messages over telephone line to conventional central station.

IP108 receives Contact-ID messages, builds DC09 IP messages with or without encryption, and send the DC09 IP message to IP server and RAP15-4. RAP15-4 then converts DC09 messages to the original Contact-ID messages, dials telephone numbers for Alarm Central and sends Contact-ID messages to Alarm Central via telephone line.
