MICRO SEVENŽ LS200-2D
PC-Programmable Telephone line simulator
(New product and advance
Information)
Copyrights 2016, 2017
MINI-PBX
SIMULATOR model LS200-2D, provides a 2-line simulated telephone-line simulator
for testing telephone products under various telephone company characteristics
by programming loop current, loop voltage, ring signal frequency, ring signal
amplitude, and insertion losses between lines in a 19-inch rack-mount
configuration. LS200-2D contains RS232 interface and/or Ethernet Interface with
provided control software. LS200-2D contains true line impairment features for
providing envelope delay distortion, frequency attenuation, and signal
attenuation in typical long-distance telecommunication line. Amount of envelope
delay distortion and amount of random noise insertion is also programmable.

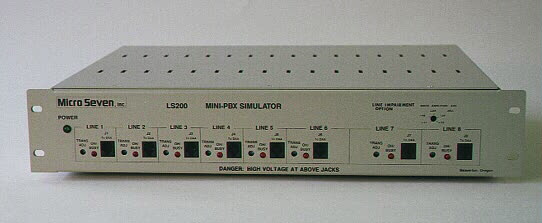

A
similar picture of model LS200-8A is shown above.
Features:
-
Control software for either RS232 interface or optional Ethernet interface
provided by Micro Seven, Inc.
-
PC-programmable loop current and loop voltage
- PC-programmable
Ring Signal Frequency and ring signal amplitude
-
PC-programmable of envelope delay characteristics of long-distance
telecommunication lines, its frequency attenuation characteristics and
amplitude-programmable random noise generator
-Stutter
dial tone on/off
-
Dual frequency call progress tones or single-frequency progress tone
-
Distinctive ringing features (total four different ringing patterns)
- RMS
voltage measurement
-
Caller-ID generation
-
Audio monitor with internal speaker
- standard
RS232 interface or optional Ethernet/Internet interface
-
optional multi-line LCD monitor
Application
and benefit
-
Useful tool to test telecommunication products under different loop voltage and
loop current and long-distance telecommunication lines.
-
Measurement of DTMF amplitude level, or signal amplitude
-
Testing for frequency responses
-
Testing distinctive ringing receiver
-
Testing Caller-ID receivers
SPECIFICATIONS
PC screen display or optional LCD monitor
loop
current, loop voltage, and dialed number
Loop
current for Line 2: 2-digits, 20-60 ma +/- 1 ma
Loop
voltage (line voltage across tip and ring) for line 2: 2-digits, 20-60 V, +/- 1
V
LED Indicators:
Power:
green LED
OH/BUSY
LED for line 1 and line 2: Red LED to indicate presence of loop current. When
high current is drawn during the ring cycle, the LED is also turned on dimly.
RS232 interface:
Programmable features: telephone number, line-impairment characteristics, call progress tones,
disconnect signal, PBX mode, caller-ID etc. The control software is Windows
Vista, 7, 8 or 10 compatible.
Dialing:
Telephone
Numbers: primary telephone number for 1 or 2 as a factory default condition.
Independent
telephone number for each line
DTMF
dialing: -13 dBm to +5 dBm per a frequency, and no more than 4 dBm difference
between frequencies.
DTMF
dialing detection time: 45 ms
Pulse
dialing: Break period: 45 to 75 ms (60 ms nominal)
Make period: 30 to 60 ms (40 ms nominal)
Line characteristics:
Input
impedance at 1 kHz: 600 ohms +/- 5%
Signal Range: -45 to +5 dBm
Bandwidth noise: 2mV P-P max. (-60 dBm) (full bandwidth mode)
Signal Bandwidth: 150 HZ to 5 kHz (full bandwidth mode)
Partial
Envelope Delay Characteristics: 800-2600 Hz: 1250 micro seconds nominal,
300 to 3000 Hz: 2000 micro seconds nominal at both band edges
Random
Noise (white noise): adjustable by control software between -60dBm and -20dBm.
One
of the following five circuit conditions may be selected by using control
software:
1.
Full Line-Impairment Condition
It
includes frequency attenuation characteristics, full envelope delay, and random
noise.
Frequency
Attenuation Characteristics relative to 1 kHz in the full line impairment mode:
+12 dB +/- 1.5 dB @ 300 Hz
+ 8 dB +/- 2.0 dB @ 500 Hz
+ 8 dB +/- 1.5 dB @ 2500 Hz
+12 dB +/- 1.5 dB @ 3000 Hz
Above Band (>3000 Hz): 80 dB/octave roll-off to 50 dB holding to 10 kHz
Below Band (<300 Hz): 24 dB/octave roll-off
Full
Envelope Delay Characteristics: 800-2600 Hz: 1750 micro seconds nominal
300-3000 Hz: 3000 micro seconds nominal at both band edges
2.
Partial Line Impairment Condition
It includes frequency attenuation characteristics, partial envelope delay, and
random noise.
Partial
Envelope Delay Characteristics: 800-2600 Hz: 1250 micro seconds nominal,
300 to 3000 Hz: 2000 micro seconds nominal at both band edges
3.
Line Impairment Condition without Envelope Delay Distortion-only frequency
attenuation characteristics
4.
20dB insertion losses between lines
5. No
line impairment condition.s
Distinctive
ringing features: four types
DTMF
dialing: -13 dBm to +5 dBm per a frequency, and no more than 4 dBm difference
between frequencies.
DTMF dialing detection time: 45 ms
Pulse
dialing:
Break
period: 45 to 75 ms (60 ms nominal)
Make period: 30 to 60 ms (40 ms nominal)
Programmable
Ring Signal:
90
VRMS 30 Hz square wave
Frequency: 16 to 68 HZ
Interval: nominally 2 sec ON/4 sec OFF
Distinctive Ring Features: User programmable for four different ringing
patterns.
It is set as 2 sec on/4 sec off as a power-up default condition.
Off-hook impedance requirement:
400
ohms maximum DC, 600 ohms nominal AC
Disconnect Signal:
There
is interruption of loop current for 0.5 sec, which is programmable by control
software, when the other line terminates a call. For example: assuming that the
line 1 and 2 are connected. The loop current of line 1 is interrupted for 0.5
sec when the line 2 hangs up.
Dual Frequency or single frequency call
progress tones:
Dial
Tone: 350 Hz + 440 HZ continuous.
Ring-back Tone: 440 Hz+480 Hz, 2 sec ON/4 sec OFF.
Busy Tone: 480 Hz + 620 Hz, 0.5 sec ON/0.5 sec OFF.
Signal Power: - 20 dBm nominal.
Transmit Power Adjustment Potentiometers:
It
attenuates the signal output from the line between 0 to -40 dB range.
RMS Voltage Measurement
RMS Measurement
of signal at line 2 is available.
Caller-ID:
Caller-ID
signals are generated at called line. It transmits date, time, name and calling
line's phone numbers. It supports both single and multiple message formats for
U.S. and Canada. The privacy or out-of-area code instead of transmitting phone
numbers and names is also enabled. Caller-ID telephone numbers and names are
also programmable by RS232C interface.
Line Input Jacks: USOC-RJ11-C, standard modular phone
jacks
Power: Requirement: 100-130 VAC, 50/60 HZ
Note: 230V power unit is also available.
Fuse: .3A, 3AG, SLOBLO
Dimensions: 19"W x 3.5" H x
13" L
Weight:
13 lbs.
19-inch
rack mount
Environmental:
Operating temperature: 0 to 45 degree C Humidity: 85% RH at 45 degree C
Warranty/Service:
Six month limited warranty. Service is performed at the factory, usually within
10 working days.
Options:
240V
AC power input
LCD monitor
Ethernet interface
