­­­­­­­­­Micro Seven Inc.® model ER200, 8-port, IP Alarm Receiver receives digital alarm messages from Contact-ID alarm panels over Internet and send automation software compatible alarm messages over RS232C
Copyrights Micro Seven, Inc.®, 2015


-Equivalent of 4 ER15s

-RS232 output

-Compatible with S.G. alarm receiver or Micro Seven formats or output raw DC-09 type message

-Contact-ID alarm message

-Three different output formats including DC-09 type format, Digital Security Controls’ MLR2E format, and decoded format
 for IP receiver and FXO receiver(optional)

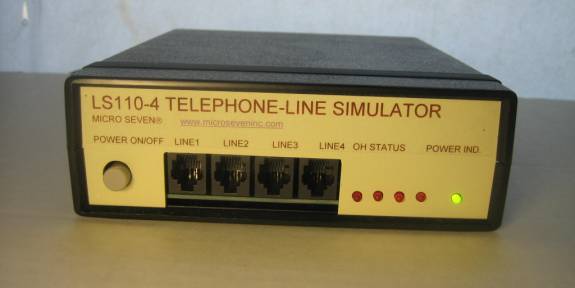

Model ER200 is similar desk-top model such as model LS110-4.


8-line alarm receiver and optional FXO(telephone line input for contact-ID)


Eight TCP or UDP type servers


RS232 interface




ANSI/SIA DC-09 for receiving data from your alarm panel

DC-05 digital communication standard(contact-ID)

Digital Security controls Ltd, MLR2E installation and operation manual


Output formats at RS232 interface by software selectable:

1. DC-09 type format including receiver numbers, account number, MAC address, time stamp, etc.

2. Digital Security controls Ltd, MLR2E installation and operation manual
3. Decoded alarm message format


Email transmission directly from ER200 for message received at both IP and FXO ports. Note that FXO port is optional.


Programming software for IP parameters


IP port numbers and DDNS parameters, which designated an external Internet name for each ER15 via Dynamic DNS or other services.



International AC/DC power adapter




Power input, 2.1mm jack with center positive

Power requirement: 12VDC @200mA by provided AC/DC power adapter

RS232 connector

Ethernet connector (4 each)


Unique MAC address


Packets receiving:


(CRC codes) “ADM-CID”) (event sequence number)(receiver number)(account pref.)(account number)(alarm events, zone, partition)(MAC address)(time stamp)<CR>





DC-05 digital communication standard(contact-ID)



FXO interface for receiving alarm messages at PBX or PSTN

ER200(TCP model) or ER200-UDP
