RAP15-1 is a stand-alone Contact-ID alarm dialer for testing telephone lines at central stations. Only telephone line and Ethernet/Internet are required to operate. Continuous or time-scheduled dialing of multiple telephone numbers is available. Upon detecting failures of delivering Contact-ID test messages, emails are transmitted to email addresses by RAP15-1 without PC.
Copyrights Micro Seven, Inc.®, 2013, 2014, 2017




-continuous 24/7 testing of all alarm receivers and telephone lines

-stand-alone telephone line testing without PC

-scheduling your testing timing


RAP15-1 also contains self-timing and time-scheduled dialer functions. In the time-scheduled dialer function,RAP15-1 reads real time information from Internet, compares with preprogrammed time schedule data for starting dialing process. The start-up and between telephone line delay are available for both self-timing or time-scheduled dialer functions.  Programmed Contact-ID message and telephone numbers remain in EEROM for providing stand-alone dialing without using PC/server. If there is a communication problem sending a Contact-ID message after dialing preprogrammed telephone numbers, RAP15-1 sends failure reports via email and/or an IP message to Micro Seven IP Server, which is software component in PC. Your email (SMTP) server and your email addresses are required. RAP15-1 can send the failure reports to multiple email addresses simultaneously. Audio monitor and battery-input terminal options are available. All programming of RAP15-1 is done via Ethernet or Internet.

Email reporting to multiple email addresses or text message addresses:

Call Failed notifying by email is always enabled.

Message success notifying may be turned on or turned off.

Alarm messages that are transmitted:

Format: Contact-ID

Account number: 9999

Event: 600 Test/Misc,  610 Test/Misc, or  601 Manual Triger Test Report

Zone: 55

Partition: 222

Contact-ID message: 999918160055222(checksum)


Maximum telephone lines for testing: 256


Maximum scheduled time: 25

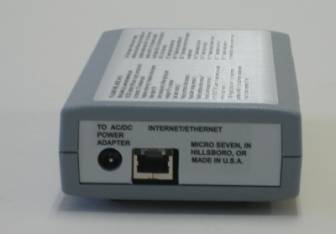

Ethernet/Internet connector

Telephone jack

Power input



Power indicator

Telephone on-hook or off-hook

Network indicators



DC-05 digital communication standard(contact-ID)


Power input: 12VDC @200ma by a provided AC/DC adapter



International AC/DC power adapter for 90-240VAC with four different power plugs (US, Europe, UK and Australia)


Made in U.S.A.


Programming of Contact-ID alarm message:

The transmitting Contact-ID message by RAP15-1 is programmable using our control software. The picture shown below indicates account number of 1234 and event code of 601 which is system test.

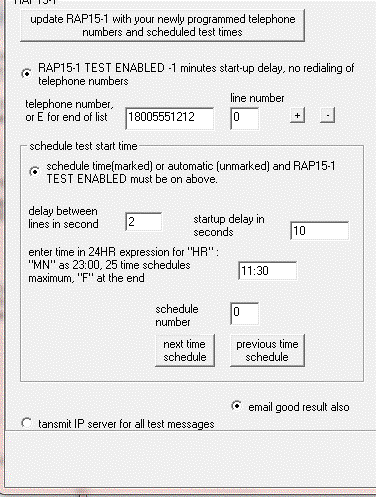

Programming of telephone numbers that RAP15-1 dials is programmable by using our control software. As shown in a picture below,

telephone number for line number 0 is programmed as 18005551212. There are maximum 256 telephone numbers that may be programmed.

Scheduled test or continuous auto-dialing is enabled when the RAP15-1 TEST ENABLED is on. When schedule time mode is enabled, automatic

dialing mode is disabled. At a scheduled time, all the telephone lines are tested and test is halted. In automatic dialing mode, another round of dialing all telephone number is started.

The RAP15-1 TEST ENABLED must be on to do continuous auto dialing or on scheduled time. The picture below indicates that testing of all the telephone is started 11:30 am.


Email is generated by RAP15-1 when test is failed or test is successful when the button “email good result also” is enabled.

When “transmit IP server for all test messages” button is on, DC09 type IP message is transmitted to DC09 IP server for all successful message transmissions.
