Micro Seven Inc. model RP10, Power Terminal switches AC power on/off wirelessly by smartphone, or BT10, USB/Wireless Interface.

Copyrights Micro Seven, Inc., 2023

Apple, the Apple logo, iPhone, and iPad are trademarks of Apple Inc., registered in the U.S. and other countries and regions. App Store is a service mark of Apple Inc.

FEATURES

-90-250VAC, 50/60Hz power switch on/off

-turned on/off by iPhone® app or BT10, USB/Wireless Interface
-19-inch rackmount RP20 with 3-8 relay-power terminals is available as a custom order

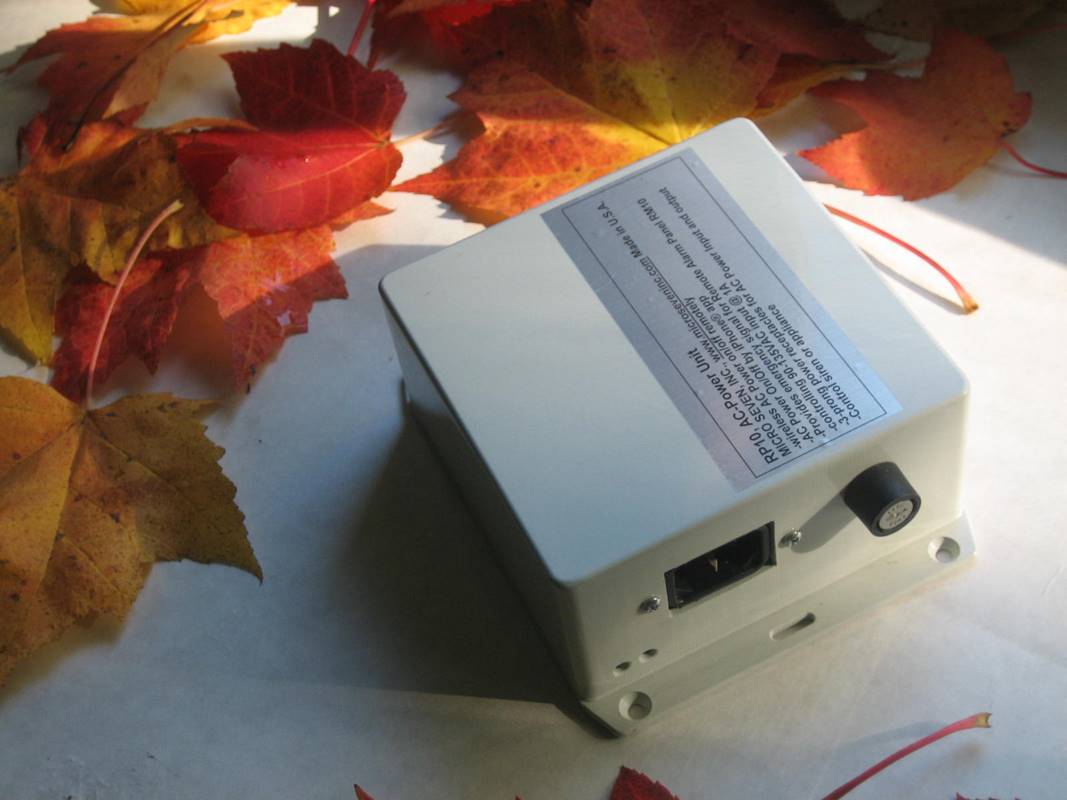

The above picture shows AC Power output connector for the switching circuit. Banana jacks instead of AC Power output connector is available as an option.

Specifications:

Size: 5”x5”x3”

Wireless Standard: IEEE 802.15.1

Wireless operation distance: 50 feet

Operating temperature: -10 to +40°C

Operating environment: Indoor use only

Power input: by provided AC/DC power adapter

Switching Relay Circuit: 90-250VAC, 1A max

Options:
Switching Relay Input and Output Terminals:
Standard 3-prong AC plug or receptacles or banana jacks

Fuse Holder for protecting switching AC output

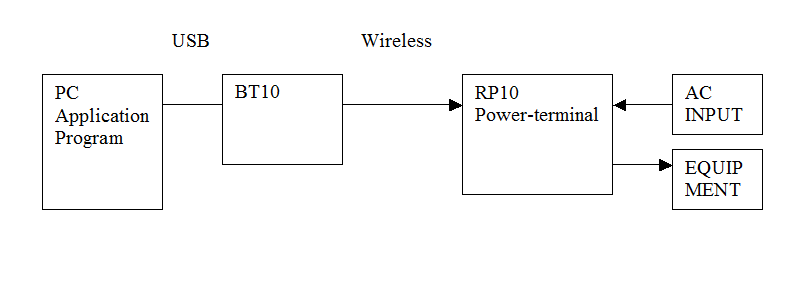

Connection detail in GATT/simulated UART communication:

Here. model BT10, USB/Wireless Interface is a client, and RP10 is a server.

The client sends “C,0,D88039FED2EF<0dh>” which contains a MAC number. The client sends “ready<0dh>” back to the server after detecting socket connection with the server. The server sends “o”. The client sends “RCF” to read the relay status in server. The client sends “MA1DE” for turning the relay on or MA11E” for turning off the relay. The client may send “S” to read the relay status in server. The client sends two-digit hexadecimal characters back to client. When the bit 6 is on, the relay is on. Otherwise, the relay is off. The Client sends “a” to disconnect the connection.

Warranty: six months

iPhone app:

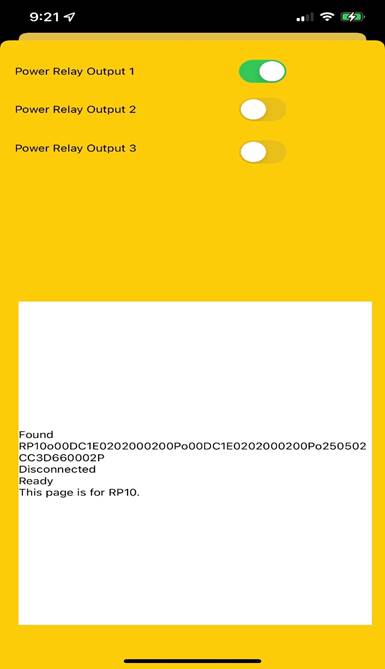

The screen shot of an app for controlling RP20 under deveopment with three output relays.

Made in U.S.A.

Portland, Oregon
