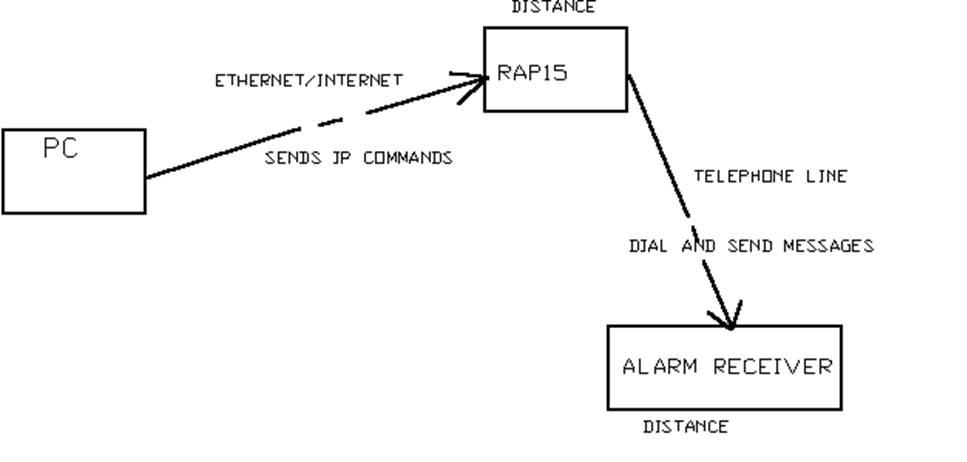

­­­Alarm receivers and their telephone lines in American cities are tested by distance PC server without spending long-distance telephone calls. Micro Seven Inc.® model RAP15, Remote PC Alarm receives IP commands from distance server, dials local telephone numbers and transmits Contact-ID alarm messages to alarm receivers. As shown in a diagram below, RAP15s are placed in major cities for receiving IP commands from servers. Message Success or Call Failed messages are transmitted to the original PC servers for tests. RAP15-1 (new) provides stand-alone polling of central stations. Instead of TCP client mode receiving IP message, RAP15 also contains a HTTP server which accepts standard HTP1.1 protocol message with telephone number and contact-ID message for dialing central station’s telephone number and delivering messages.




Copyrights Micro Seven, Inc.®, 2013, 2014

Delivering Contact-ID messages at telephone lines via Ethernet/Internet via browser or application program

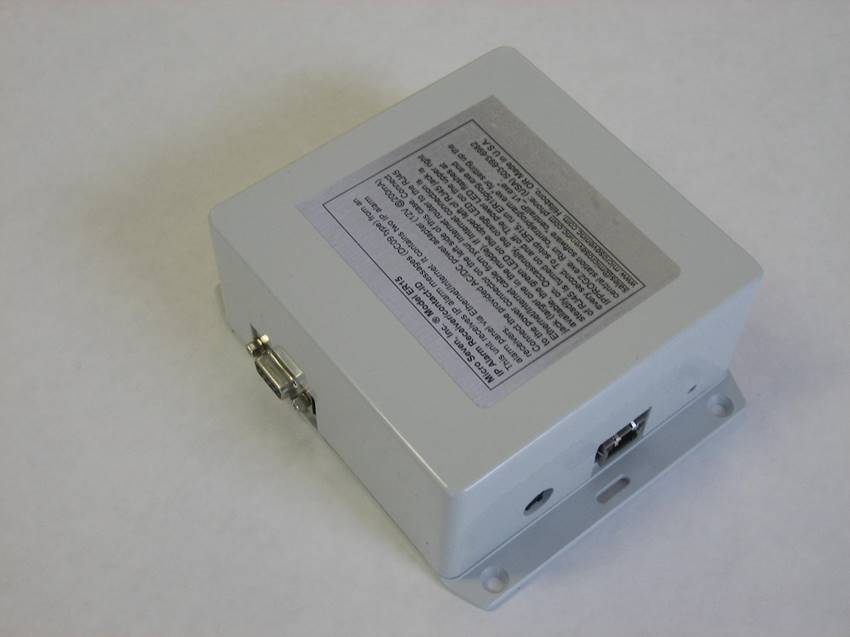

The left picture is the front panel of RAP15 with telephone connector and LED indicators for power and OH/BUSY. The right picture is the rear panel of RAP15 with power connector and Ethernet connector.


                                           front panel of RAP15

                                                                                                                                rear panel of RAP15






FEATURES

-Save long-distance and international telephone calls

-Testing alarm receivers from remote locations

-sending alarm messages to any place with Internet connection
-for continuous 24/7 testing of all alarm receivers and telephone lines

-stand-alone telephone line testing without using your server/PC (RAP15-1) new

-scheduling your testing timing in real time (RAP15-1) new













Introduction

Micro Seven, Inc. model RAP15 contains TCP server function for custom TCP communications and optional HTTP 1.1 protocol for Ethernet/Internet interface. RAP15 receives TCP packets from TCP-client,  and it dials telephone number and delivers Contact-ID messages at telephone line interface. RAP15 re-transmits alarm messages until receiving kiss-off tones from alarm receivers for maximum four times. If there is telephone line problems, RAP15 redials the telephone numbers until the alarm receivers transmits kiss-off tones back to RAP15 for maximum three times. Message success or Call Fail messages are transmitted from RAP15 to PC for alarm messages delivery status. RAP15 is not only for reporting emergency conditions but it is also useful for sending test messages for testing alarm receivers.

RAP15-1
RAP15-1 also contains self-timing and time-scheduled dialer functions. In the time-scheduled dialer function,RAP15-1 reads real time information from Internet, compares with preprogrammed time schedule data for starting dialing process. The start-up and between telephone line delay are available for both self-timing or time-scheduled dialer functions.  Programmed Contact-ID message and telephone numbers remain in EEROM for providing stand-alone dialing without using PC/server. If there is a communication problem sending a Contact-ID message after dialing preprogrammed telephone numbers, RAP15-1 sends failure reports via email and/or an IP message to Micro Seven IP Server, which is software component in PC. Your email (SMTP) server and your email addresses are required. RAP15-1 can send the failure reports to multiple email addresses simultaneously. Audio monitor and battery-input terminal options are available. All programming of RAP15-1 is done via Ethernet or Internet.



Alarm messages that are transmitted:

Format: Contact-ID

Account number: 9999

Event: 600 Test/Misc,  610 Test/Misc, or  601 Manual Triger Test Report

Zone: 55

Partition: 222

Contact-ID message: 999918160055222(checksum)



Software components that are provided utilizing rap15.dll:



Note: “rap15.dll” provides TCP socket programming and transmits IP messages to RAP15.



#include “rap15.h



include “rap15.c” in your project. Include rap15.dll in your project directory. Use the following command to access RAP15:



int RAP15sendmessage2(LPSTR alarmmessptr, LPSTR telephoneptr,LPSTR portptr, LPSTR ippointer,LPSTR replyptr, int mode,  int messagelength);

Returning value: 0 for normal, 1 for socket error

Alarmmessptr: (input parameter) memory pointer for alarm message buffer, i.e. “1234181131010158”



Telephoneptr: (input parameter) memory pointer for telephone number buffer, i.e. “9,5035551212”



Portptr: memory: (input parameter)  pointer for IP port number, i.e. “9999”



Ippointer: (input parameter) memory pointer for server IP address, i.e. “192.168.1.45”, “alarmtesting5.dyndns-ip.com”, or “yourcompany.com” for accepting DNS and Dynamic DNS name resolution



Replyptr: (output parameter) memory pointer for reply message, single byte containing hex 1 for MESSSAGE SUCCESS, hex 2 for CALL FAILED, 0 for WORK IN PROGRESS



Mode (input parameter): 0 for hang-up after successful message transmission, 1 for no hang-up after successful message transmission, 2 for hang up telephone (going on-hook), 3 for reading test result.



Messagelength (output parameter) contains a number of byte in the reply message pointer “replyptr”.

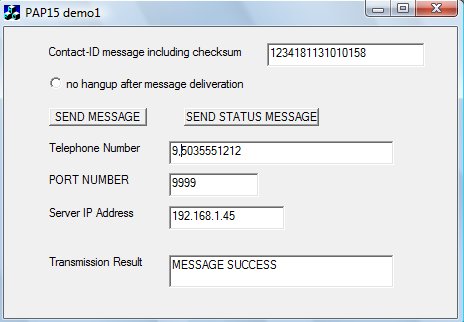

The screen shot of the demo program, “rap15demo”:



            When the “SEND MESSAGE” button is clicked, an IP command string consisting of a Contact-ID message of

“1234181131010158” and a telephone number of “9,5035551212” is transmitted to RAP15 with the Server IP Address of

            “192.168.1.45”.  RAP15 opens an off-hook relay, dials “9”, wait for 2 second because of a comma in the telephone-

string, dials “5035551212”, which may be a telephone number of an alarm receiver. RAP15 transmits

a message of “1234181131010158” after receiving handshake tone from the alarm receiver. The alarm receiver

transmits kiss-off tone to RAP15, which turns off the off-hook relay to end the sequence.



RAP15 transmits the transmission result of Message Success in the Transmission Result window below.

The demo program actually transmits the IP command to start RAP15 to dial and send alarm messages.

And it continuously polls RAP15 for “MESSAGE SUCCESS” or “CALL FALED” for every two seconds.







Standards:



DC-05 digital communication standard(contact-ID)



Ethernet/Internet specifications



IP commands are transmitted via TCP ports.

Unique MAC address for each RAP15

Domain Name Service resolution

ICMP-server (ping)

Dynamic DNS Client Update for dyndns.com, no-ip.com, or dnsomatic.com

DHCP client



Other capabilities that may be included:

1.      SMTP Client (email)

2.      SNTP (real-time)

3.      Contact-ID alarm receiver

4.      Transmission as a client and/or reception of DC-09 type alarm messages as a server



Power input: 12VDC @200ma by a provided AC/DC adapter



Options:

HTTP server with HTTP 1.1 protocol instead of custom TCP server function

International AC/DC power adapter for 90-240VAC with four different power plugs (US, Europe, UK and Australia)

Audio monitor and battery-input terminal options for RAP15-1.



HTTP server Option

HTTP server is to receive dialing telephone number and contact-ID alarm messages from Mozilla Firefox or Internet Explorer instead of the custom TCP server. For example, command for accessing http server at 192.168.254.42 for dialing a telephone number 18005551234 at FXO interface and delivering Contact-ID message of 1234181131010158 is shown in the picture below..

Name or Dyndns may be used instead of IP address of 192.168.254.42.

Polling command for message delivery result such as “message success” or “message fail” is also included.



http://192.168.254.42/do?&t=18005551234&c=1234181131010158



Note: Standard port:80 unless port number specified in the command string of HTTP1.1 protocol specifications.



Made in U.S.A.



We also have AP15 that contains conventional RS232 interface instead of Ethernet/Internet.



Micro Seven, Inc. ®

1095-K N.E. 25th Hillsboro, OR 97229 U.S.A.

phone: 503-693-6982, fax: 503-693-9742

Home Page: www.microseveninc.com

Email: sales@microseveninc.com
